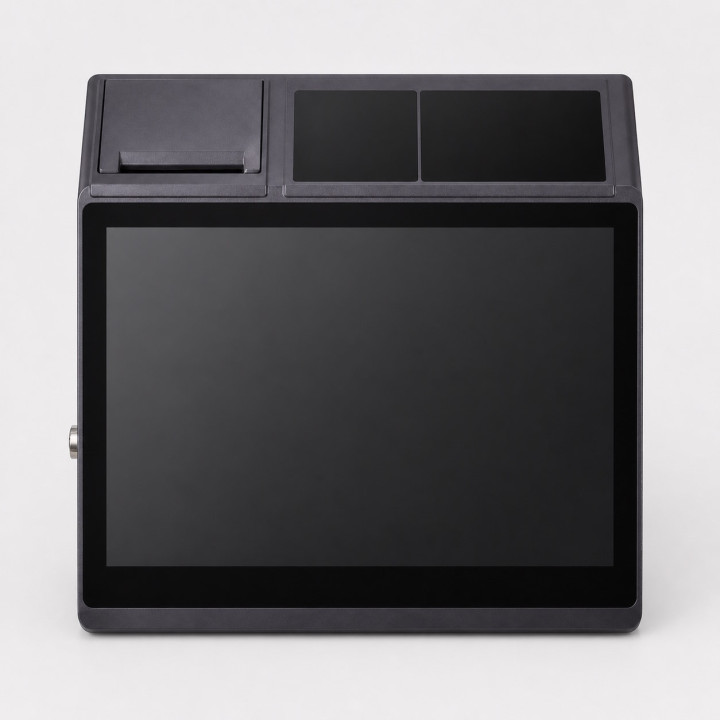

ZQ-T3180 POS System from above

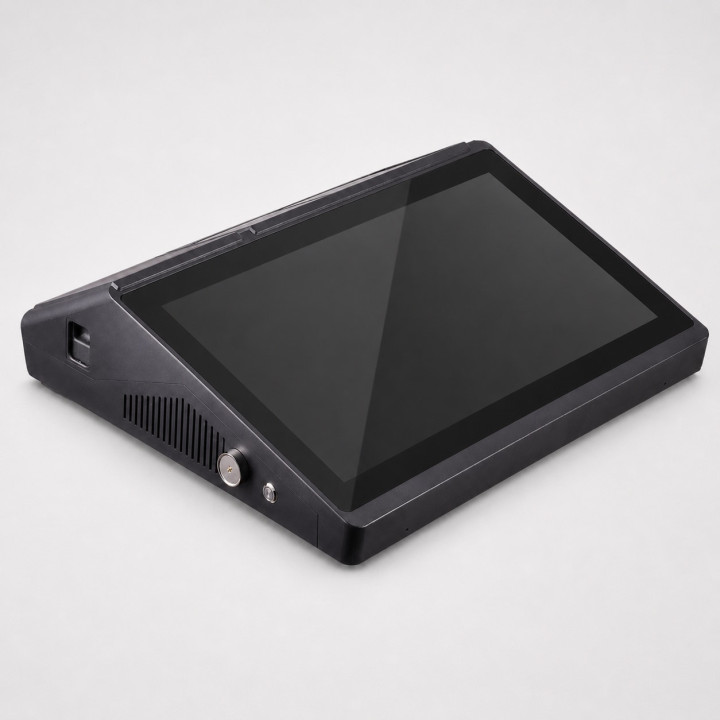

ZQ-T3180 POS System front left

ZQ-T3180 POS System, 15,6 Inch (capacitive)

ZBM

The ZQ-T3180 is a flat 15.6" PC-based all-in-one POS system with Intel Celeron J6412, integrated 80 mm thermal printer, 2x20 VFD customer display, and iButton/Dallas lock. Ideal for professional Windows or Linux checkout stations with a larger operating surface.

ZQ-T3180 – Flat 15.6" All-in-One POS System (PC-Based)

The ZQ-T3180 is a flat 15.6-inch all-in-one POS system designed for professional checkout stations requiring a larger operating surface and classic PC architecture. It is ideal for retail, hospitality, chain operations, quick-service restaurants, and service-intensive POS environments where touchscreen, receipt printer, customer display, and operator identification need to be combined in a single system.

The PC variant runs on an Intel Celeron J6412 processor with expandable DDR4 RAM and an m.2 SATA SSD, providing a solid platform for Windows and Linux-based POS software. The integrated 80 mm thermal printer, 2x20 VFD customer display, and iButton/Dallas lock reduce external peripherals, cabling, and counter space at the checkout. With Gigabit LAN, USB 3.0, USB 2.0, RS232, VGA, and cash drawer ports, the ZQ-T3180 integrates flexibly into existing POS infrastructures.

  • Brand
  • Reference
    ZQ-T3180

  • Kassenladen Anschluss
    1× RJ-11 Power Pin 12V or 24V
  • Gehäuse
    Plastic
  • Gewicht
    3.75 kg
  • Dimensions
    385 × 345 × 105 mm (L × W × H)
  • Operating Conditions
    ~ -10 °C – ~ 40 °C
  • Storage Conditions
    ~ -20 °C – ~ 55 °C
  • Processor
    Intel® Celeron® Processor J6412
  • RAM
    Standard 8 GB, optional up to 16 GB DDR4
  • Storage
    Standard 128 GB SSD, optional up to 512 GB
  • Display
    15.6" TFT LCD, 1920×1080, 16:9
  • Touch
    Capacitive, 3-point standard
  • Interfaces
    1× COM, 1× VGA, 2× USB 3.0, 2× USB 2.0, 1× LAN (1000M), RJ-11/12, Audio Out
  • Operating Systems
    Windows 11 compatible
  • Audio
    1× Realtek 8111H, 1× 3.5 mm Audio Port
  • Certifications
    CE, FCC, LVD, RoHS
  • Peripherals Included
    VFD Customer Display (2×20), 80 mm Thermal Printer (80×60), iButton / Dallas
  • Resolution
    1920 × 1080 px (16:9)
  • Power Supply
    DC 12V
