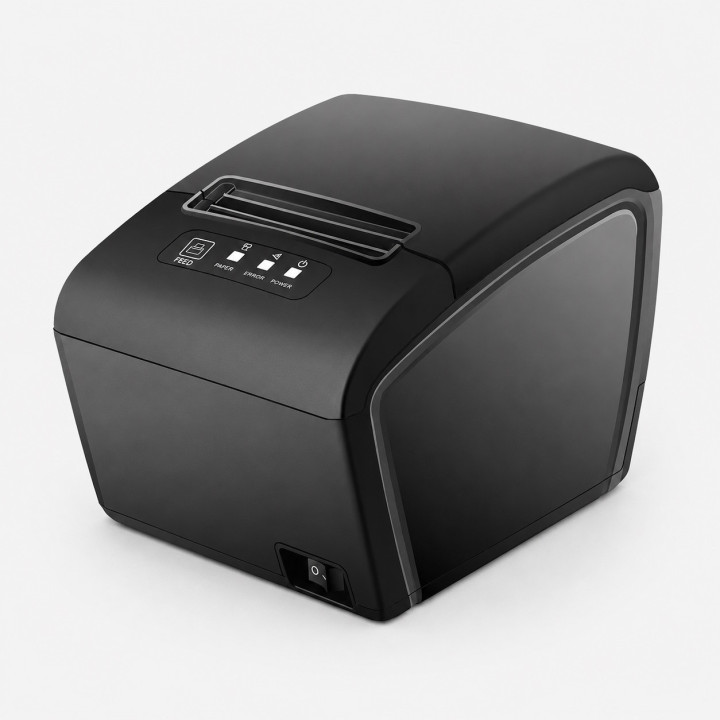

AB-S260M Thermal printer front right

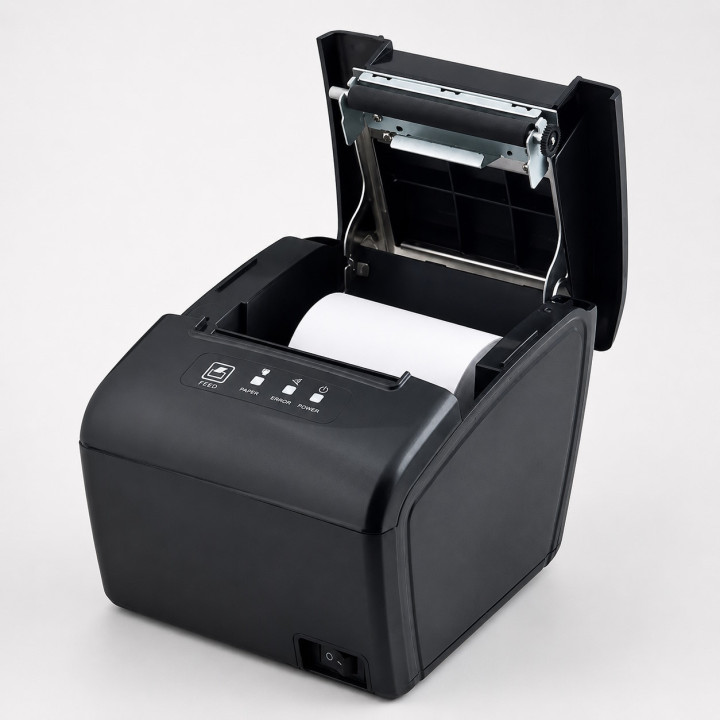

AB-S260M Thermal printer front right unfolded

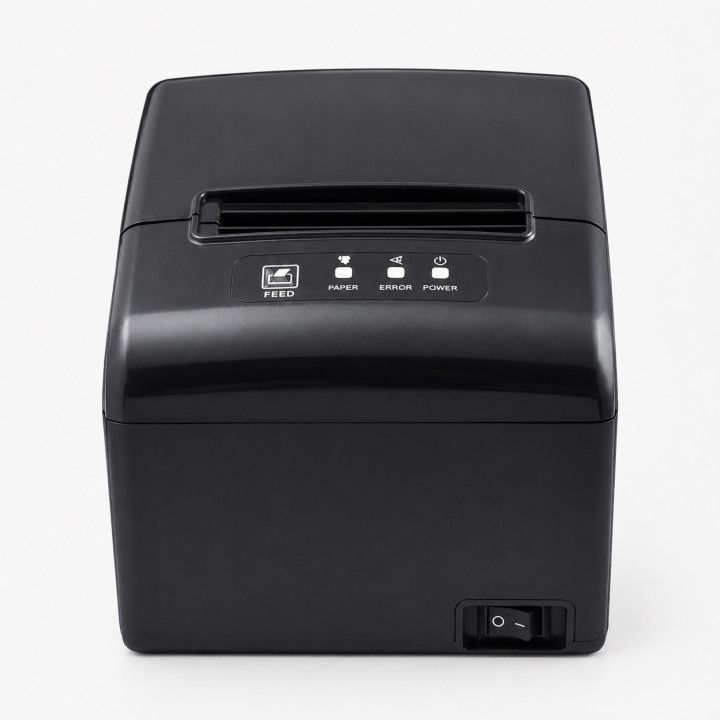

AB-S260M Thermal printer front

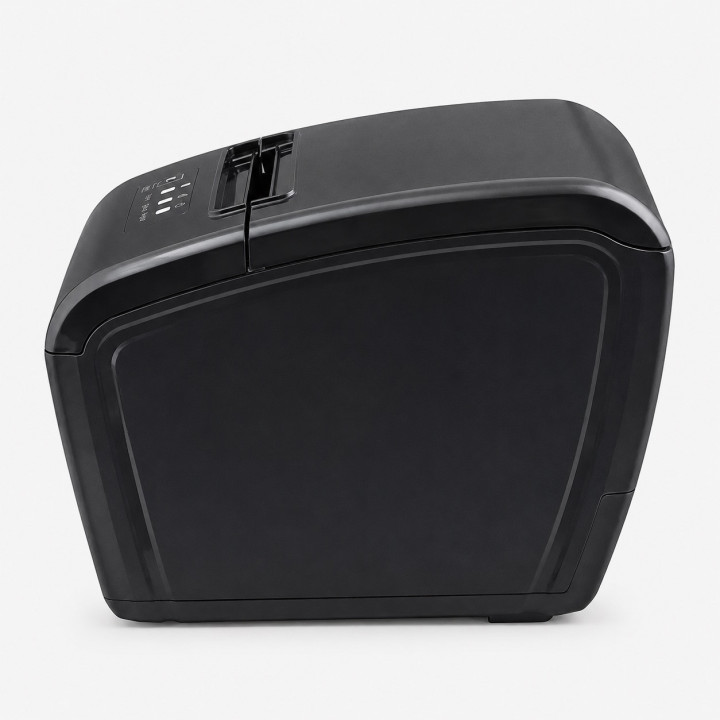

AB-S260M Thermal printer from the side

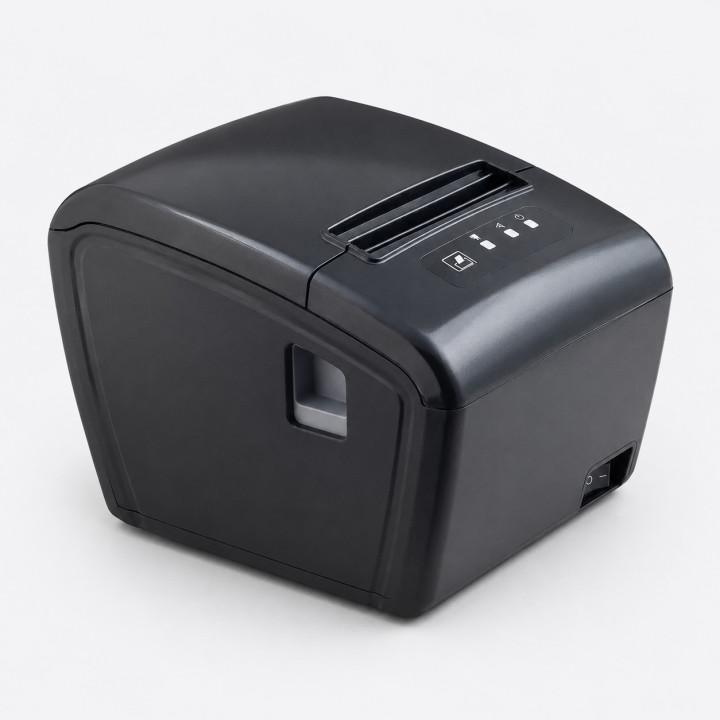

AB-S260M Thermal printer front left

AB-S260M 80x80x12 Thermal printer

AB-S260: fast 80mm thermal printer with 260 mm/s, auto-cutter, USB, Serial, and LAN for POS systems in retail, hospitality, and point-of-sale environments.

AB-S260 – Fast 80mm Thermal Printer for Professional POS Systems

The AB-S260 is a compact and powerful 80mm thermal printer designed for professional POS applications in retail, hospitality, and service-oriented checkout environments. With a print speed of up to 260 mm/s, direct thermal printing, and an automatic cutter, this receipt printer is ideal for fast receipt output in daily point-of-sale operations.

Thanks to its combined USB + Serial + LAN interface, the AB-S260 integrates flexibly into existing POS systems, terminals, and network infrastructures. ESC/POS compatibility, easy paper loading, and robust build quality make it a reliable solution for checkout stations where speed, everyday practicality, and stable connectivity matter more than unnecessary frills.

  • Reference
    AB-S260M

  • Gewicht
    0.97 kg
  • Dimensions
    180 × 140 × 134.1mm (D × W × H)
  • Operating Conditions
    0 - 45 °C, 10 - 80% RH
  • Storage Conditions
    -10 - 60 °C, 10 - 90% RH
  • Interfaces
    USB + Serial + LAN
  • Power Supply
    DC 24V / 2.5A
  • Printing Method
    Direct thermal
  • Paper Width
    79.5±0.5 mm
  • Print Width
    72mm / 76mm / 80mm / 64mm / 48mm / 52mm
  • Column Capacity
    576 dots/line (adjustable by command)
  • Max. Print Speed
    260 mm/s
  • Line Spacing
    3.75mm (adjustable by commands)
  • Column Number
    80mm paper: Font A - 42 or 48 columns / Font B - 56 or 64 columns / Chinese - 21 or 24 columns
  • Character Size
    ANK, Font A: 1.5×3.0mm (12×24 dots), Font B: 1.1×2.1mm (9×17 dots), Chinese: 3.0×3.0mm (24×24 dots)
  • Auto Cutter
    Partial
  • Barcode Character Sets
    PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
  • Barcode Types
    UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
  • 2D Barcode
    QR CODE / PDF417 (unavailable in interfaces: USB+Serial)
  • Input Buffer
    128 Kbytes
  • NV Flash
    256 Kbytes
  • Cash Drawer Output
    DC 24V / 1A
  • Cutter Life
    1.5 million cuts
  • Printer Head Life
    150 km
  • Emulation
    ESC/POS
  • Driver
    Windows / JPOS / OPOS / Linux / Android / Mac
  • SDK
    iOS / Android / Windows
