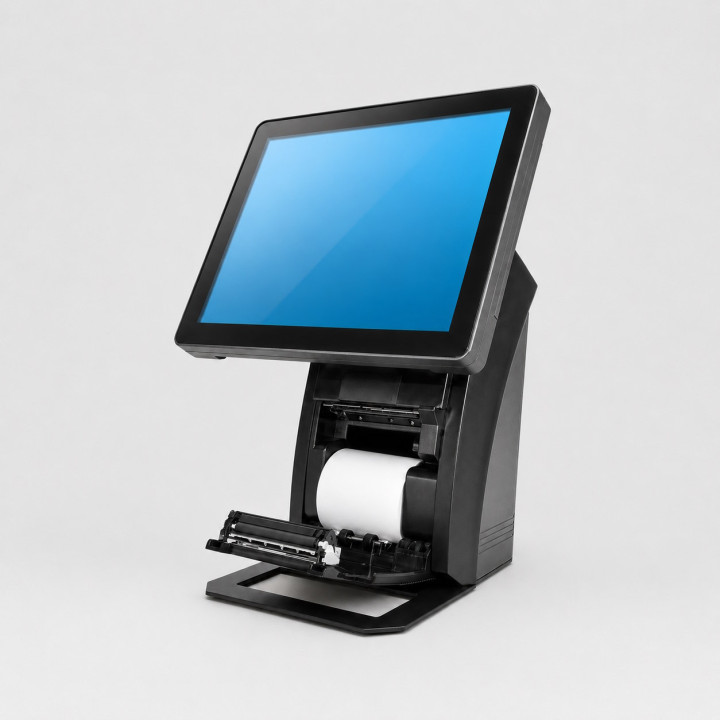

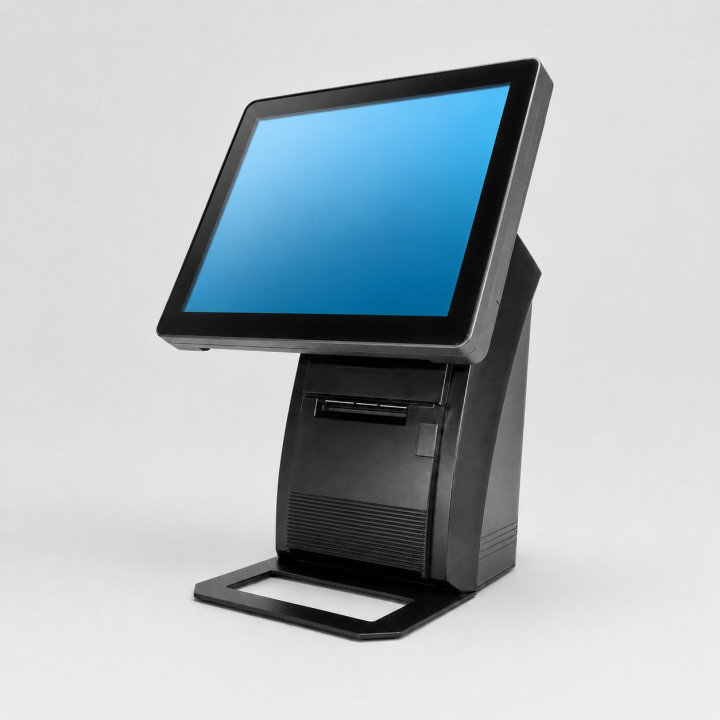

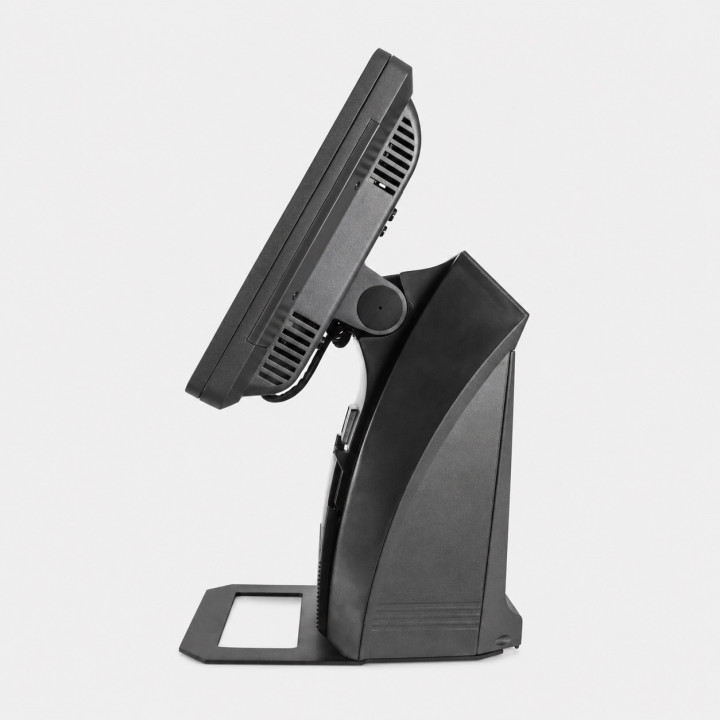

ZQ-Pmid All in One POS System, 12 Inch (capacitive)

The ZQ-P1088Mid is a compact 12-inch all-in-one POS system with an integrated 80 mm thermal printer and 2×20 VFD customer display. Equipped with an Intel Celeron J6412 CPU, 8 GB RAM, and 128 GB SSD, this robust POS system is ideal for hospitality, retail, and service-oriented checkout stations with limited space.

All in one. Compact. Powerful.

The ZQ-P1088Mid is a compact 12-inch all-in-one POS system designed for professional applications in hospitality, retail, bakeries, cafés, quick-service restaurants, and service environments. Touchscreen, terminal unit, integrated 80 mm thermal printer, and 2×20 VFD customer display are combined in one space-saving system – ideal for checkout stations where a clean setup, short workflows, and reliable receipt printing are essential.

The robust aluminum housing combines a stable build with a clean, functional design language. By integrating the receipt printer and customer display, the ZQ-P1088Mid reduces external peripherals, visible cables, and unnecessary counter space. This makes the system particularly suited for modern POS environments where ease of use, organization, and everyday reliability matter more than separate standalone devices.

With a current Intel Celeron J6412 CPU, 8 GB RAM, and 128 GB SSD, the ZQ-P1088Mid provides a solid technical foundation for common POS software, fast operating processes, and stable workflows in daily operation. The fanless design, bezel-free touchscreen, and service-friendly construction make the system a compact, reliable solution for professional checkout stations with limited space.

Optionally, the POS system can be extended with a Dallas or Addimat lock depending on the use case. This allows the ZQ-P1088Mid to be flexibly adapted to different requirements in retail, hospitality, and service-oriented POS installations.

  • Brand
  • Reference
    ZQ-Pmid

  • Kassenladen Anschluss
    1× RJ-11 Power Pin 12V or 24V
  • Gehäuse
    Plastic / Aluminum
  • Dimensions
    360 x 290 x 225 mm (H × W × D)
  • Operating Conditions
    ~ -10 °C – ~ 40 °C
  • Storage Conditions
    ~ -20 °C – ~ 55 °C
  • Processor
    Intel® Celeron® Processor J6412
  • RAM
    Standard 8 GB, optional up to 16 GB DDR4
  • Storage
    Standard 128 GB SSD, optional up to 512 GB
  • Display
    12" TFT LCD, 1024×768, 4:3
  • Touch
    Capacitive, 3-point standard
  • Interfaces
    1× COM, 1× VGA, 2× USB 3.0, 2× USB 2.0, 1× LAN (1000M), RJ-11/12, Audio Out
  • Power Supply
    24 V / 4 A external
  • Operating Systems
    Windows 11 compatible
  • Optional
    Dallas/Addimat lock
  • Peripherals Included
    VFD customer display (2×20), 80 mm thermal printer (80×80)
