• New

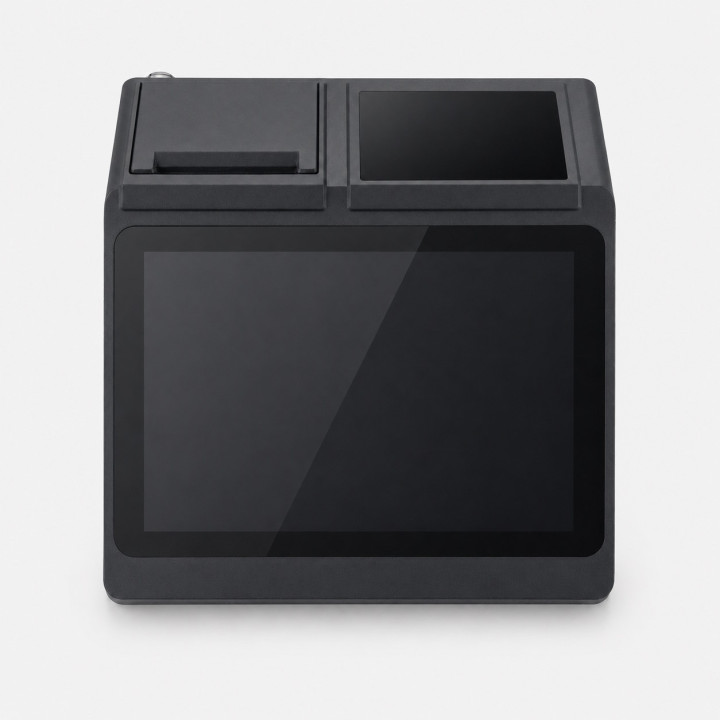

ZQ-T2180 POS System from above

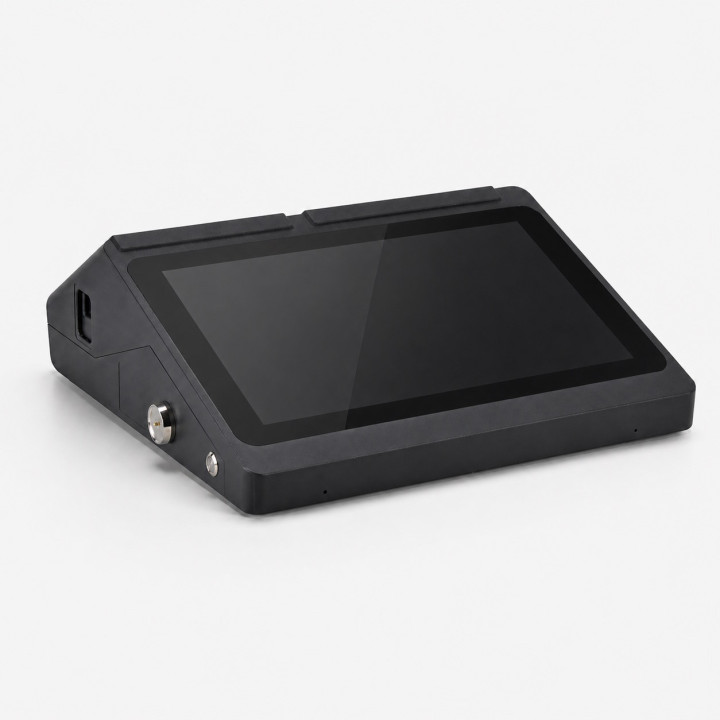

ZQ-T2180 POS System front left

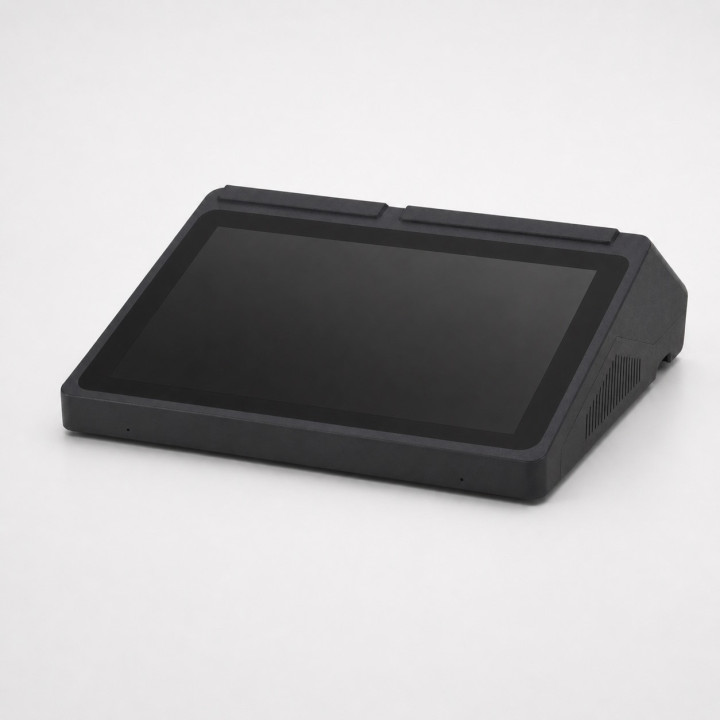

ZQ-T2180 POS System front right

ZQ-T2180 POS System, 11,6 Inch (capacitive)

ZBM

The ZQ-T2180 is a compact 11.6" PC-based POS system with an integrated 80 mm thermal printer, 2x20 VFD customer display, and iButton/Dallas lock. Ideal for space-saving Windows or Linux POS installations in retail, hospitality, and service environments.

ZQ-T2180 – Compact 11.6" All-in-One POS System (PC-Based)

The ZQ-T2180 is a slim and compact 11.6-inch all-in-one POS system designed for professional point-of-sale applications in retail, hospitality, bakeries, cafés, and service-oriented checkout areas. By combining a touchscreen, integrated cash register unit, 80 mm thermal printer, 2x20 VFD customer display, and iButton/Dallas lock, it delivers a space-saving POS solution that is particularly suited for smaller counters and tidy checkout stations.

Built on a PC platform, the ZQ-T2180 features an Intel Celeron J6412 processor, expandable DDR4 RAM, and an m.2 SATA SSD, providing a stable technical foundation for traditional POS software running on Windows or Linux. Gigabit LAN, USB, RS232, VGA, and cash drawer ports ensure flexible integration into existing POS environments – compact in form, but fully capable in function.

  • Brand
  • Reference
    ZQ-T2180

  • Kassenladen Anschluss
    1× RJ-11 Power Pin 12V or 24V
  • Gehäuse
    Plastic
  • Gewicht
    2.7 kg
  • Dimensions
    310 × 300 × 102.5 mm (L × W × H)
  • Operating Conditions
    ~ -10 °C – ~ 40 °C
  • Storage Conditions
    ~ -20 °C – ~ 55 °C
  • Processor
    Intel® Celeron® Processor J6412
  • RAM
    Standard 8 GB, optional up to 16 GB DDR4
  • Storage
    Standard 128 GB SSD, optional up to 512 GB
  • Display
    11.6" TFT LCD, 1920×1080, 16:9
  • Touch
    Capacitive, 3-point standard
  • Interfaces
    1× COM, 1× VGA, 2× USB 3.0, 2× USB 2.0, 1× LAN (1000M), RJ-11/12, Audio Out
  • Operating Systems
    Windows 11 compatible
  • Audio
    1× Realtek 8111H, 1× 3.5 mm Audio Port
  • Certifications
    CE, FCC, LVD, RoHS
  • Peripherals Included
    VFD Customer Display (2×20), 80 mm Thermal Printer (80×60), iButton / Dallas
  • Resolution
    1920 × 1080 px (16:9)
  • Power Supply
    DC 12V
