MP-PS30 Pole Mount Stand

PS-30 & PS-50 Pole Mount Stands – Professional POS Mounting Systems for Checkout, Service and Retail Environments

The PS-30 and PS-50 Pole Mount Stands are professional POS mounting systems designed to create clean, stable and ergonomic checkout and service workstations. They allow monitors, POS terminals, receipt printers and handheld scanners to be mounted on one central pole, helping businesses organize their point-of-sale hardware in a space-saving and efficient way.

Whether used in retail, hospitality, restaurants, ticketing, reception areas or service counters, the PS-30 and PS-50 provide a structured mounting solution for modern POS environments. Instead of placing multiple devices loosely on the counter, the system brings essential hardware into one organized setup with flexible positioning, adjustable holders and integrated cable management.

Two Versions for Different Installation Requirements: PS-30 and PS-50

The PS-30 and PS-50 are based on the same modular mounting concept but differ in size, weight and pole diameter.

The PS-30 Pole Mount Stand is the more compact version. With a 45 mm pole diameter and a pole height of 500 mm, it is suitable for professional POS workstations where a stable yet space-saving setup is required.

The PS-50 Pole Mount Stand is the more robust version. With a 50 mm pole diameter and a heavier construction, it is designed for more demanding POS installations where additional stability and a stronger structure are required.

Flexible Mounting for Monitor, Printer, POS Terminal and Scanner

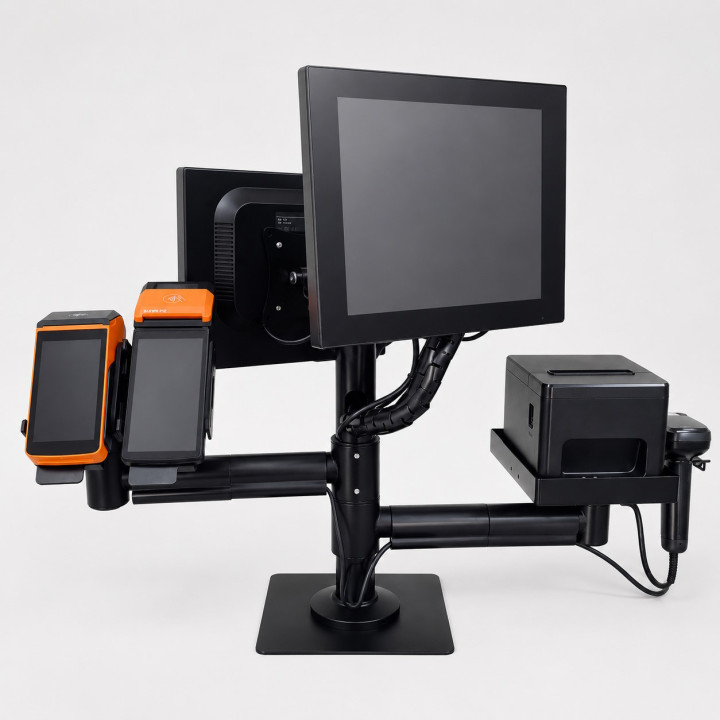

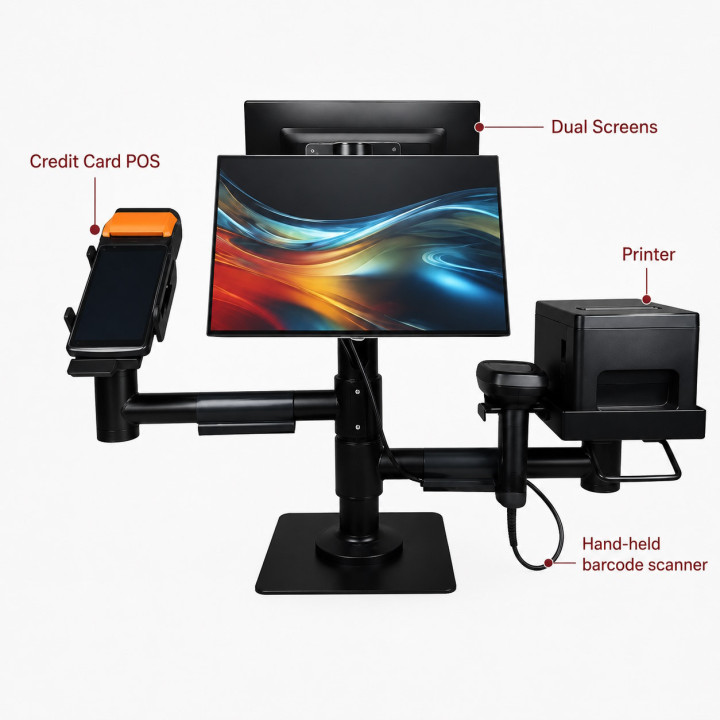

The Pole Mount Stands are designed to support typical POS hardware in one central installation. The system includes two screen mount holders, a POS clip, a printer tray and a rack for a handheld barcode scanner. This allows a complete checkout or service workstation to be arranged clearly and efficiently.

The screen mount holders support common VESA patterns, including 65 × 65 mm, 75 × 75 mm and 100 × 100 mm. Each holder can be rotated around the pole and adjusted in height. The display angle can also be adjusted up to 45°, allowing the monitors to be positioned for staff, customers or service personnel.

The adjustable POS clip is designed for suitable card terminals or similar devices. The printer tray provides space for compact receipt printers, while the scanner rack can be installed on the left or right side of the printer tray depending on the preferred workflow.

Clean Workstation Design with Internal Cable Management

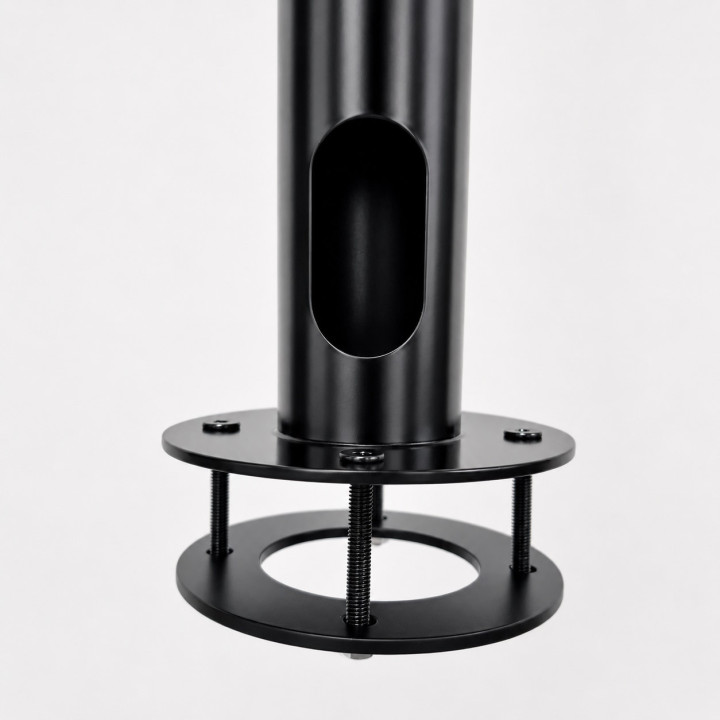

A professional POS workstation needs to be stable, organized and easy to maintain. The PS-30 and PS-50 Pole Mount Stands feature internal cable management to keep connection cables routed neatly through the system.

This helps reduce visible cable clutter on the counter and creates a cleaner, more professional appearance. In busy checkout and service environments, organized cable routing also helps reduce interference during daily operation.

Designed for Modern POS and Checkout Workstations

The PS-30 and PS-50 Pole Mount Stands are suitable for a wide range of professional applications, including:

• Retail stores and specialist retailers
• Restaurants, cafés and quick-service environments
• Hotels and reception areas
• Pharmacies and medical reception desks
• Ticketing, check-in and access control
• Service counters and customer support desks
• Warehouses, pickup stations and dispatch areas

Wherever monitors, POS terminals, printers and scanners need to be integrated into a compact and reliable workstation, the PS-30 and PS-50 provide a practical and professional mounting solution.

Practical Features for Professional POS Installations

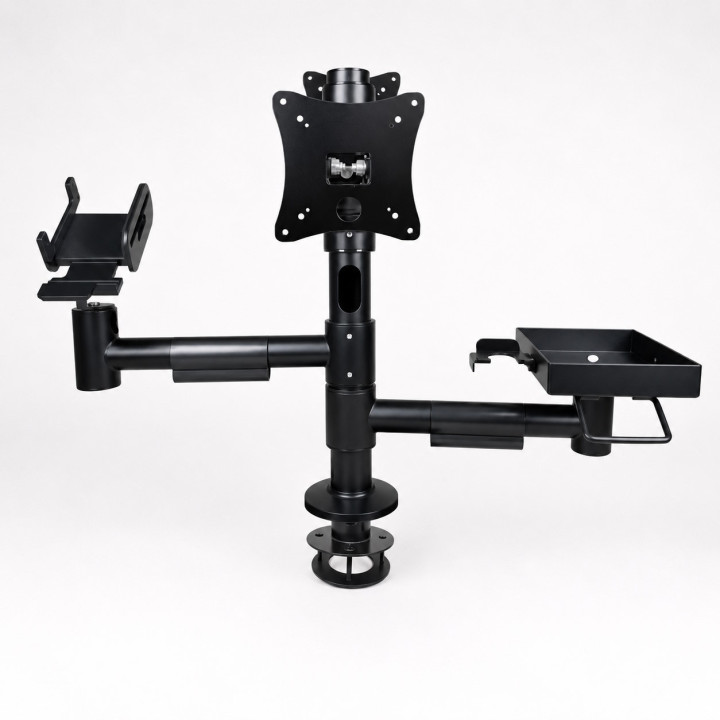

The system includes two monitor holders, a printer tray, a POS clip, a scanner rack and a central base pole. Depending on the configuration, optional accessories such as a second POS clip, a base plate or a keyboard tray may be available.

The holders can be rotated 360° around the pole and adjusted in height. This makes it easy to position devices exactly where they are needed in the daily workflow. The result is a cleaner counter, better device accessibility and a more professional point-of-sale setup.

Technical Overview

The PS-30 features a pole height of 500 mm, a pole diameter of 45 mm and a net weight of 5.2 kg. The PS-50 is the more robust model with a 50 mm pole diameter and a net weight of 6.0 kg. The printer/POS arm length is 280 mm on both models, while the dual screen arm length is 100 mm.

The printer tray measures 148 × 200 mm. The POS clip is adjustable from 69 to 90 mm in width and from 98 to 118 mm in length. The internal cable routing opening measures 25 × 50 mm on the PS-30 and 32 × 65 mm on the PS-50.

Key Benefits at a Glance

• Professional POS mounting system for checkout and service areas
• Two versions: compact PS-30 and more robust PS-50
• Suitable for monitor, POS terminal, printer and handheld scanner
• Two screen mount holders with VESA compatibility
• 360° rotatable and height-adjustable holders
• Adjustable display angle up to 45°
• Adjustable POS clip
• Printer tray for compact POS and receipt printers
• Scanner rack can be mounted on the left or right side
• Internal cable management for a clean installation
• Space-saving organization of the complete POS workstation
• Optional accessories available depending on configuration

Conclusion: A Clean and Professional POS Setup Instead of Countertop Clutter

The PS-30 and PS-50 Pole Mount Stands are designed for businesses that want to integrate their POS hardware in a stable, organized and space-saving way. They combine a robust mounting structure with flexible adjustment options and help create a cleaner, more efficient checkout or service workstation.

For modern retail, hospitality and service environments, the PS-30 and PS-50 offer a practical solution for mounting monitors, payment terminals, receipt printers and scanners in one professional POS setup.
