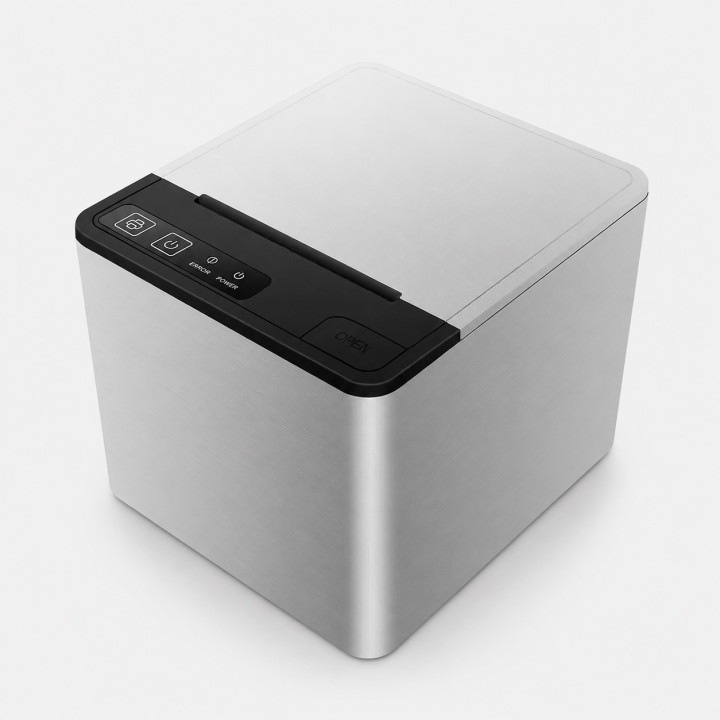

AB-Q809K Thermal printer front right

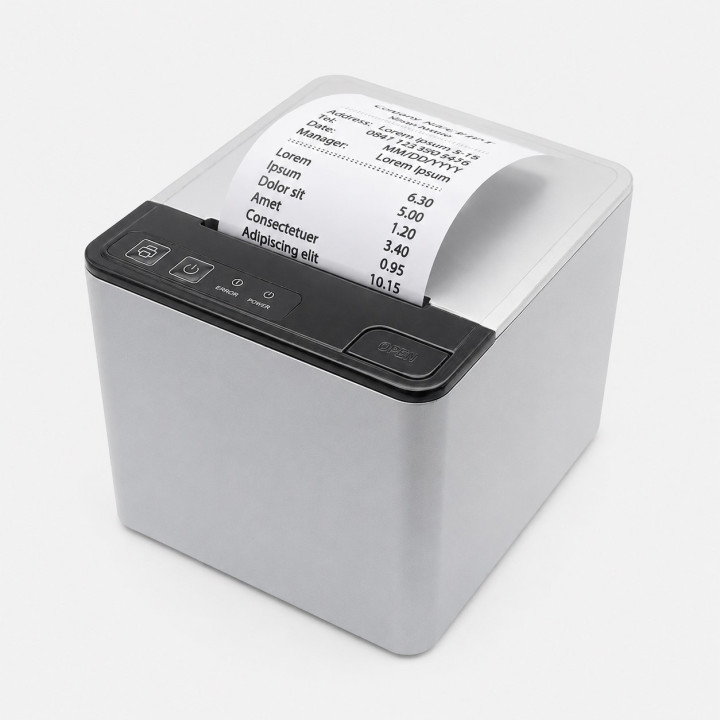

AB-Q809K Thermal printer front right with receipt

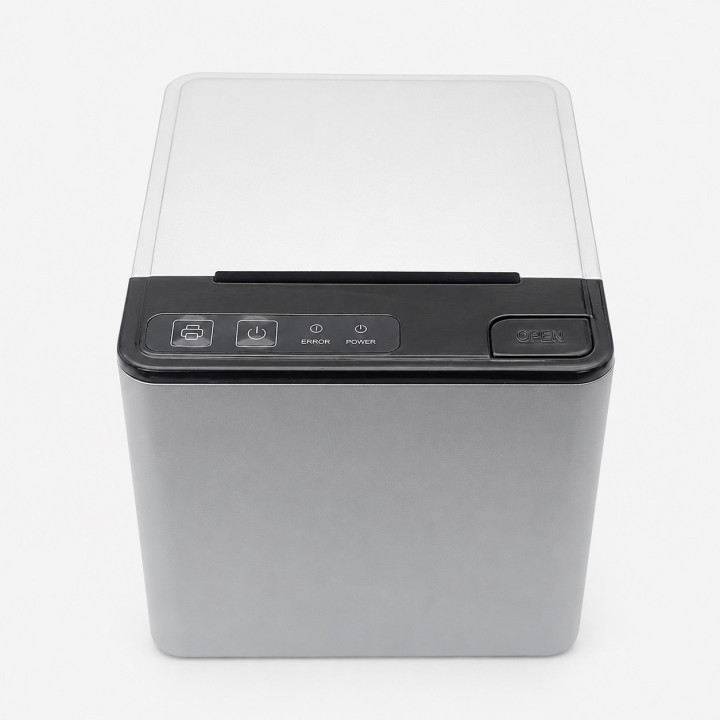

AB-Q809K Thermal printer front

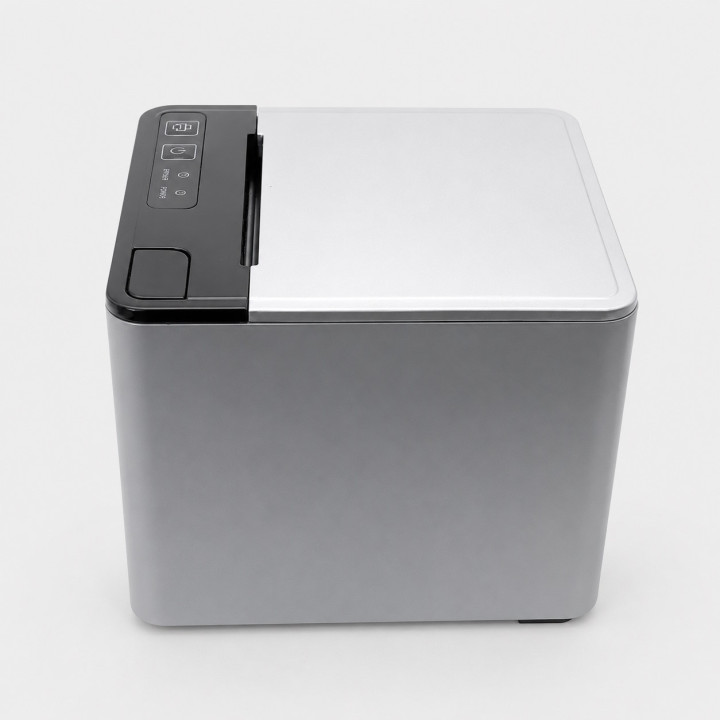

AB-Q809K Thermal printer from the side

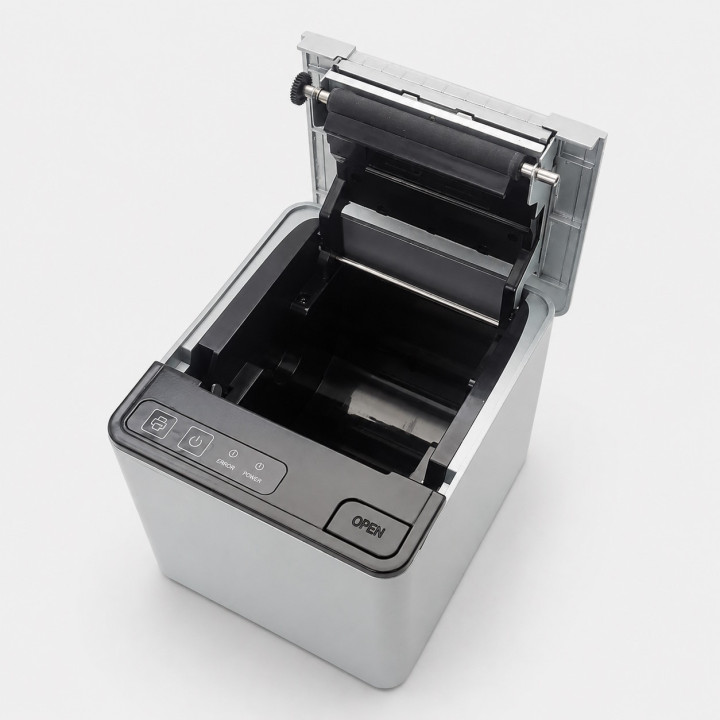

AB-Q809K Thermal printer above unfolded

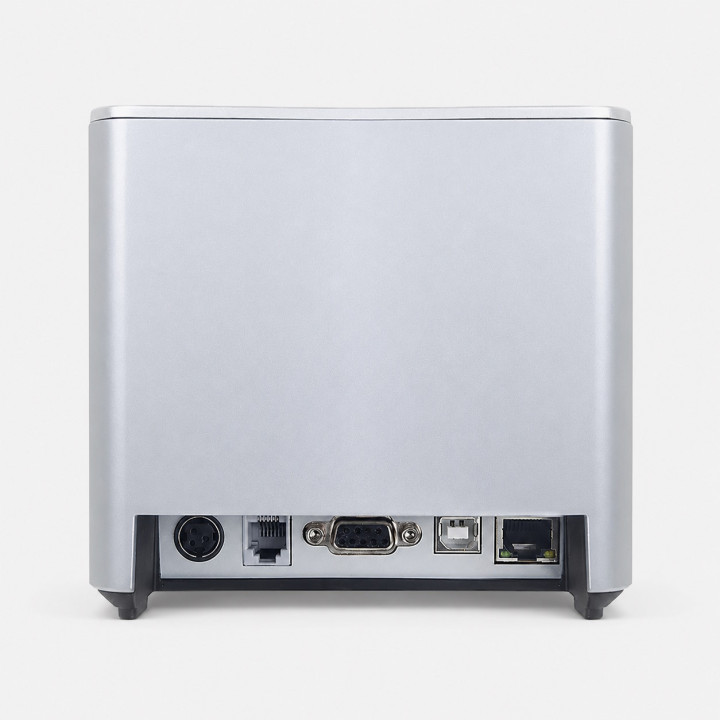

AB-Q809K Thermal printer rear

AB-Q809K 80x80x12 Thermal printer

AB-Q809K: compact 80mm thermal printer with 260 mm/s, auto-cutter, ESC/POS as well as USB, Serial, and LAN for professional POS systems.

AB-Q809K – Compact 80mm Thermal Printer for POS Systems

The AB-Q809K is a compact and reliable 80mm thermal printer for professional POS systems in retail, hospitality, and service-oriented point-of-sale environments. With a print speed of up to 260 mm/s, direct thermal printing, and an automatic cutter, this receipt printer delivers fast and clean receipt output in daily checkout operations.

Thanks to its USB, Serial, and LAN interfaces, the AB-Q809K integrates flexibly into existing POS systems, terminals, and network infrastructures. ESC/POS compatibility, support for common 1D and 2D barcodes, and its robust desktop design make this printer a practical solution for checkout stations where reliable connectivity, easy operation, and consistent print performance are essential.

  • Reference
    AB-Q809K

  • Gewicht
    0.84 kg
  • Dimensions
    152 × 134 × 125mm (D × W × H)
  • Operating Conditions
    0 - 45 °C, 10 - 80% RH
  • Storage Conditions
    -10 - 60 °C, 10 - 80% RH
  • Interfaces
    USB + Serial + LAN + BT/WiFi
  • Power Supply
    DC 24V / 2.5A
  • Printing Method
    Direct thermal
  • Paper Width
    79.5±0.5 mm
  • Column Capacity
    576 dots/line
  • Max. Print Speed
    260 mm/s
  • Line Spacing
    3.75mm (adjustable by commands)
  • Character Size
    ANK, Font A: 1.5×3.0mm (12×24 dots), Font B: 1.1×2.1mm (9×17 dots), Chinese/Traditional Chinese: 3.0×3.0mm (24×24 dots)
  • Auto Cutter
    Partial
  • Barcode Character Sets
    PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
  • Barcode Types
    UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
  • 2D Barcode
    QR CODE / PDF417
  • Input Buffer
    4096 Kbytes
  • NV Flash
    256 Kbytes
  • Cash Drawer Output
    DC 24V / 1A
  • Cutter Life
    1.5 million cuts
  • Printer Head Life
    150 km
  • Emulation
    ESC/POS
  • Driver
    Windows / JPOS / OPOS / Linux / Android
